Alustar Round Flush

October 18, 2017 9:15 am Published by

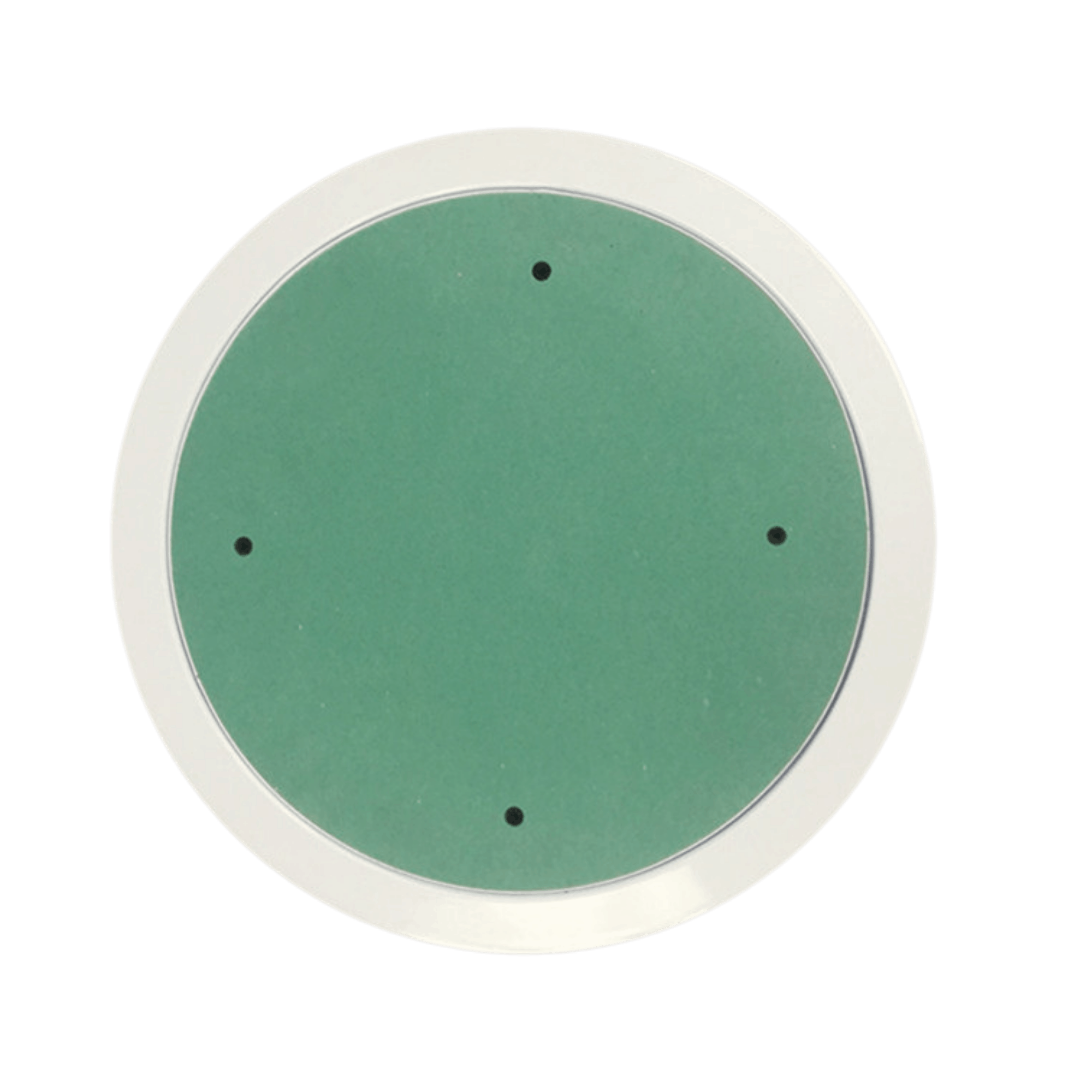

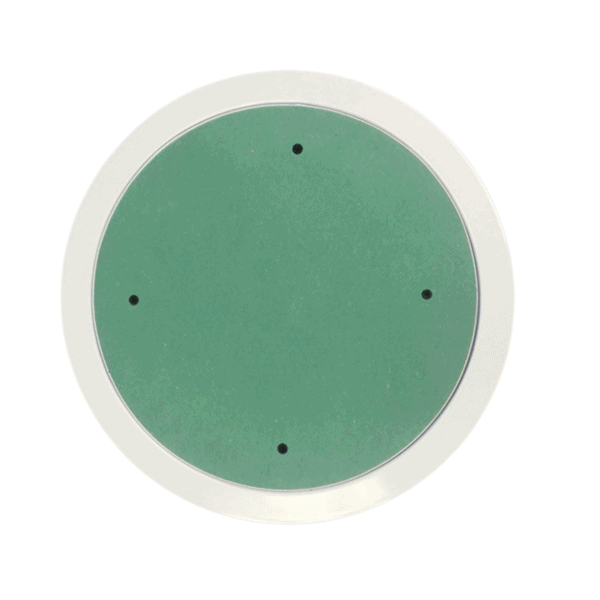

Alustar Round
  • Alustar Round
  • Alustar Round Back
  • round flush2

Kimberley Alustar Access Panels are the quick and easy to install solution for accessing concealed spaces in walls or ceilings.  Featuring a sturdy aluminium frame, there is no need to trowl finish like you would with set bead panels.  This results in a tidy, streamlined installation that is sure to blend neatly with space.

Categories: ,

Description

  • Full radius opening
  • Applications include Typical Gypsum & Masonry Construction
  • Frame & Door hatch sections are manufactured from sturdy Aluminium for stability & strength
  • Low Profile Design
  • 12mm gypsum board door
  • Secured using easy to use snap-in locks and retainers
  • The door is secured and hinged by galvanised  brackets.
  • Locked on the opposite side by means of two spring loaded latches
  • Closes when the door is shut firmly and the spring loaded latches locks into place and retain the door
  • Hatch door is completely removable for Full Access, ensuring OH&S Compliance

Specs

Available in the following sizes (mm) :

K221379 – 300mm dia.
Cut-Out Size: 300mm dia.
Outer Frame Size: 343mm

K221380 – 400mm dia. (currently not available – ETA To Be Confirmed)
Cut-Out Size: 400mm dia.
Outer Frame Size: 443mm

K221382 – 600mm dia. (currently not available – ETA To Be Confirmed)
Cut-Out Size: 600mm dia.
Outer Frame Size: 643mm

Brochure

Access Panel Brochure

Installation Instructions

Alustar Installation Instructions
