Alustar Flush

October 18, 2017 9:11 am Published by

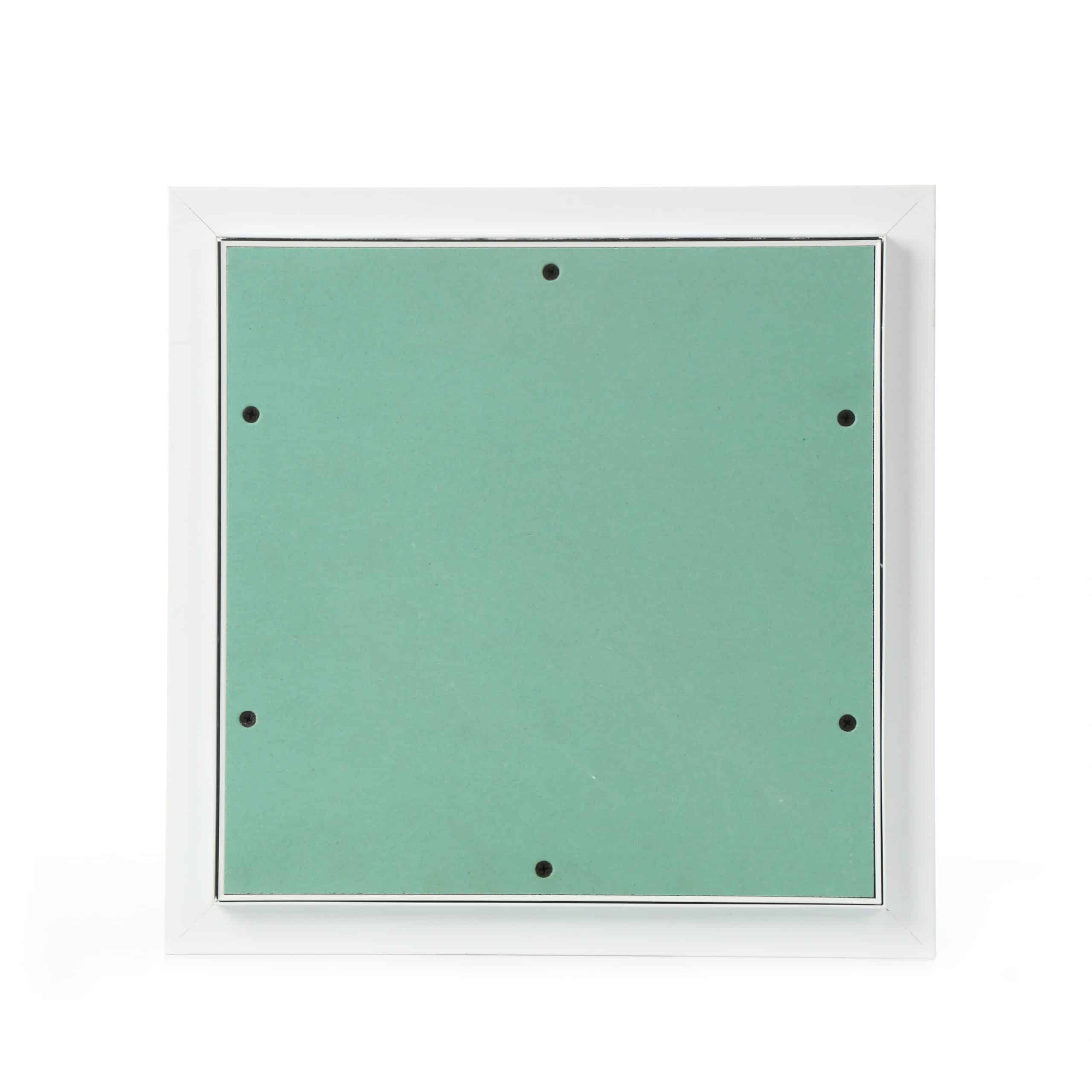

Alustar White Squaresml

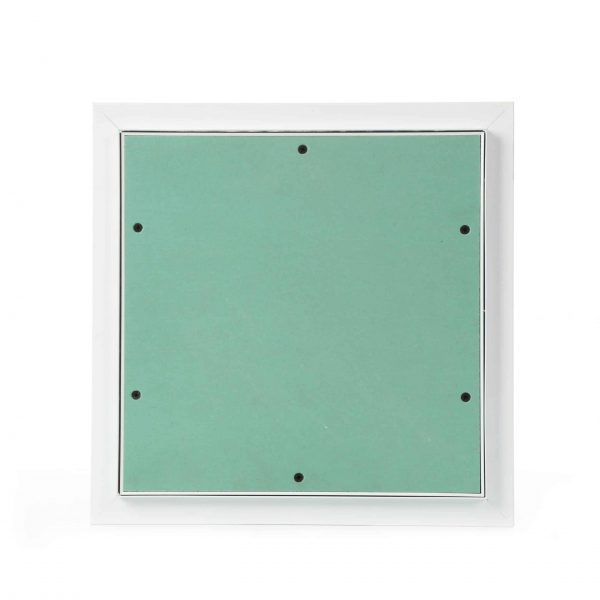

  • Alustar White Squaresml
  • Alustar White Square OF
  • Alustar White Square Back

Kimberley Alustar Access Panels are the quick and easy to install solution for accessing concealed spaces in walls or ceilings.  Featuring a sturdy powder coated white galvanized steel frame, there is no need to trowl finish like you would with set bead panels.  This results in a tidy, streamlined installation that is sure to blend neatly with space.

Categories: ,

Description

  • Applications include Typical Gypsum & Masonry Construction
  • Frame & Door hatch sections are manufactured from sturdy powder coated white galvanized steel for stability & strength
  • Low Profile Design
  • Reinforced corners for added strength
  • 12.5mm gypsum board door
  • The door is secured and hinged by two brackets
  • Locked on the opposite side by means of two spring loaded latches
  • Closes when the door is shut firmly and the spring loaded latches lock into place and retain the door
  • Hatch door is completely removable for Full Access, ensuring OH&S Compliance

Specs

Available in the following sizes (mm) :

K120370 – 200×200
Cut-Out Size (mm): 200 x 200mm
Outer Frame Size (mm): 243 x 243mm

K120372 – 300×300
Cut-Out Size (mm): 300 x 300mm
Outer Frame Size (mm): 343 x 343mm

K220374 – 400×400
Cut-Out Size (mm): 400 x 400mm
Outer Frame Size (mm): 443 x 443mm

K220378 – 500×500
Cut-Out Size (mm): 500 x 500mm
Outer Frame Size (mm): 543 x 543mm

K220380 – 600×600
Cut-Out Size (mm): 600 x 600mm
Outer Frame Size (mm): 643 x 643mm

Brochure

Access Panel Brochure

Installation Instructions

Alustar Installation Instructions
