Alustar Eco Plus

October 18, 2017 9:03 am Published by
AlustarEco
  • AlustarEco

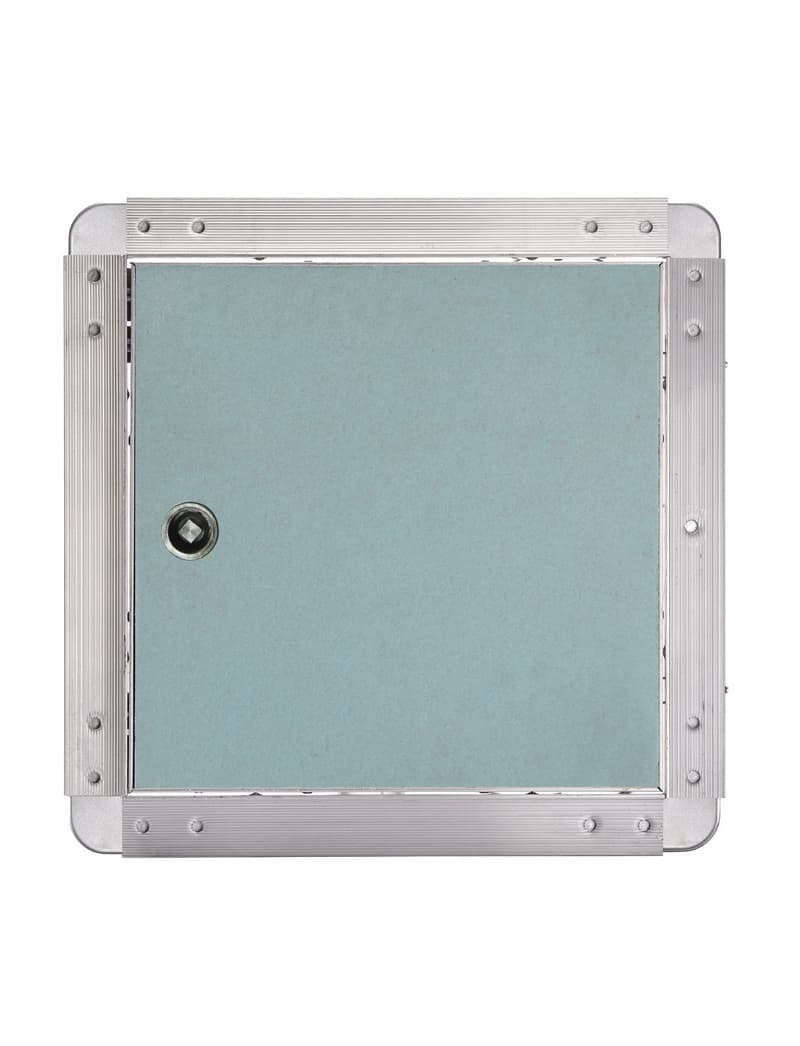

Kimberley Alustar Access Panels are the quick and easy to install solution for accessing concealed spaces in walls or ceilings.  Featuring a sturdy aluminium frame, there is no need to trowl finish like you would with set bead panels.  This results in a tidy, streamlined installation that is sure to blend neatly with space.

Categories: ,

Description

  • Applications include Typical Gypsum & Masonry Construction
  • Frame & Door hatch sections are manufactured from sturdy Aluminium for stability & strength
  • Low Profile Design
  • Reinforced corners for added strength
  • 12.5mm gypsum board door and square lock
  • The door is secured and hinged by two galvanised  brackets, including square lock
  • Locked on the opposite side by means of two spring loaded latches
  • Closes when the door is shut firmly and the spring loaded latches lock into place and retain the door
  • Hatch door is completely removable for Full Access, ensuring OH&S Compliance

Specs

Available in the following sizes (mm) :

K120041 – 300×300
Cut-Out Size (mm): 300 x 300mm
Outer Frame Size (mm): 343 x 343mm

K120042 – 400×400
Cut-Out Size (mm): 400 x 400mm
Outer Frame Size (mm): 443 x 443mm

K120044 – 500×500
Cut-Out Size (mm): 500 x 500mm
Outer Frame Size (mm): 543 x 543mm

K120045 – 600×600
Cut-Out Size (mm): 600 x 600mm
Outer Frame Size (mm): 643 x 643mm

Brochure

Access Panel Brochure

Installation Instructions

Alustar Installation Instructions
